PE High & Low-Pressure Film Machine

Model No.︰

SJ-A50|A55|A65|

Brand Name︰

-

Country of Origin︰

-

Unit Price︰

-

Minimum Order︰

-

Share on:

Product Description

The machinge body is channel steel frame with single rolling friction ,which is suitable for blowing high-low pressure polyethylene industral film and agricultural mulch film.

Model A50 A55 A65 A65-1
Diameter of screw φ50 φ55 φ65 φ65
Rcduced diameter of film(mm) 100-600 200-800 300-1000 400-1200
Single-face Thickness of film(mm) 0.01-0.10 0.01-0.10 0.01-0.10 0.01-0.10

Max.Extrusion(Kg/h)

35

50

65

80

L/D 28:1 28:1 28:1 28:1
Power of main moto(kw) 7.5 11 15 18.5
Power of Tracion main moto(kw) 0.75 0.75 0.75 0.75
Heating Power(kw) 11 13 19 21

Outline diameter(LxWxH) (mm)

4800x1900x4100 5500x2100x4700 6500x2300x4900 6500x2500x5600
Weight(T) 1.5T 2T 2.3T 2.6T

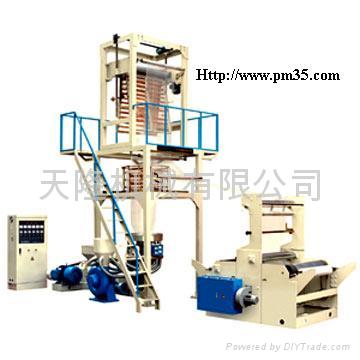

Product Image
